Main Features
- Max Payload Up To 520g/1.15lb(After balanced), smartphone width range is from 55mm to 88mm, easily compatible with many large screen smartphones under 7 inches.
- Runtime Up To 11 Hours, charging time is about 1.5h with 18W fast charger and providing strong power for shooting.
- Three Axis Motor-lock Design to get easy storage.
- Special Integrated Underslung Grip of SCORP Series gimbal, which can switch between different angles in more shooting scenes and is more labor-saving when using. Especially good for Low-angle shooting.
- Multifunction Knob, quick control the movement of tilt, roll and pan axis, electronic focus or zoom.
- Free view for wide-angle lens with professional three-axis design.
- It can directly control smartphone original camera and popular Beautycam APP by Bluetooth connection.
- Remote Control, Smart Tracking, Gesture Control, Auto-connection, Motion Time-lapse, Overlapping Image and Light Tracking features can be achieved on Feiyu ON APP.
- Feiyu Magnetic Fill Light (Optional): easier to shoot in the darkness.
- Feiyu Intelligent Tracking Module (Optional): track object or face more accurately and realize intelligent AI tracking function without App. (Please note that currently the AI tracking module can ONLY be used for tracking in landscape mode.)
Specification
General
Name

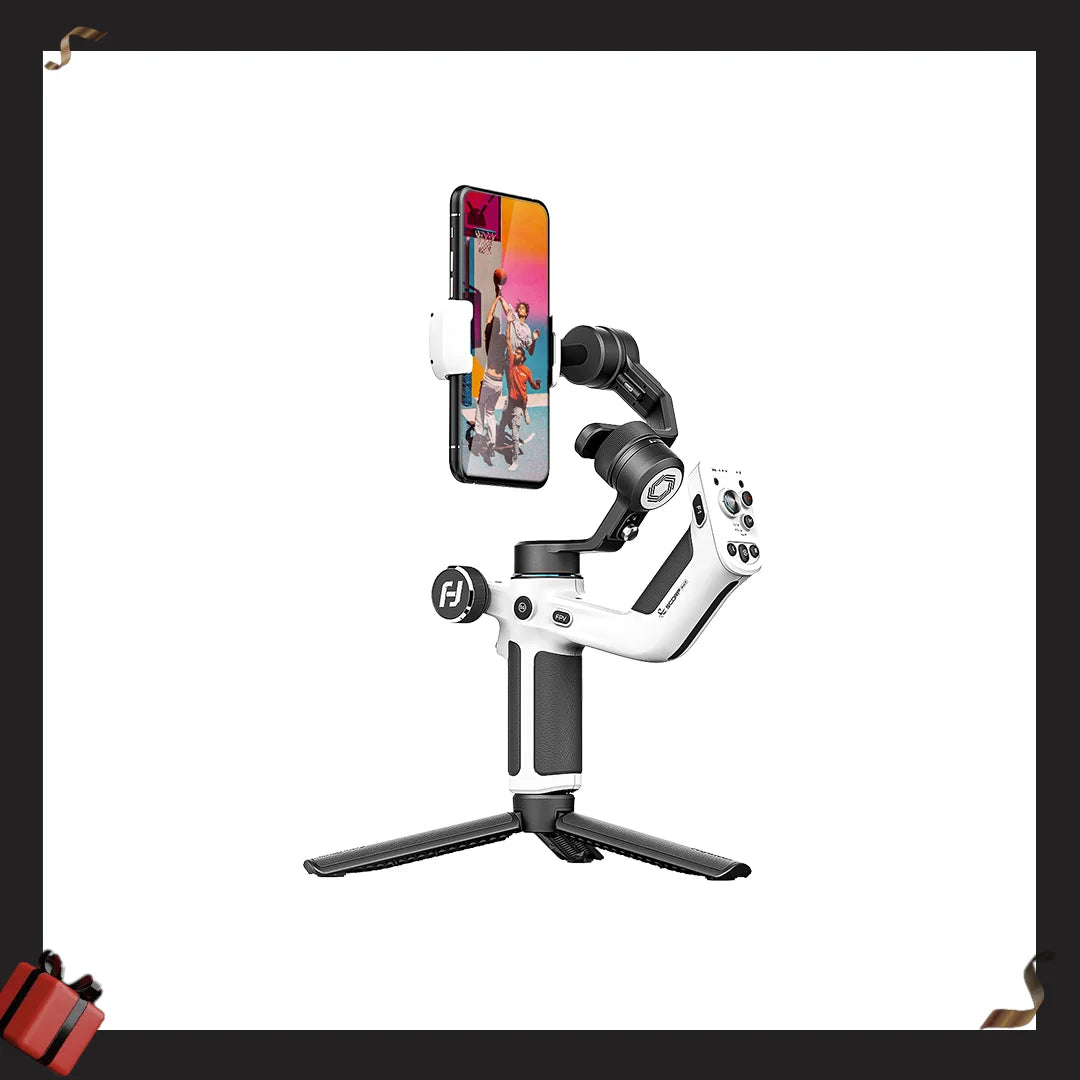

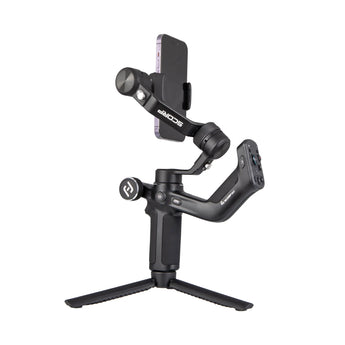

Feiyu SCORP-Mini P 3-Axis Handheld Gimbal for Smartphone
Dimensions
188.3*132.6*328.6mm(Gimbal balancing position)
236.8*65.1*323.1mm(Gimbal folded position)
Weight
About 683g/1.5lb(Not include tripod)
Payload
About 520g/1.15lb(Well balanced)
Material of Main Body
Synthetic Macromolecular Resin, Aluminum Alloy
Water Proof
Not Water-proof
Gimbal
Stabilization
3-axis Motor
Rotatable Range
Tilt: +143°~-147° (±3°)
Roll: +90.4°~-199.7° (±3°)
Pan: 360° (Unlimited)
Follow Mode
PF Mode
Pan follow, only the pan axis follows the movement of user's hand
PTF Mode
Pan and tilt follow, where both the pan and tilt axes follow the movement of user's hand, but roll axis does not
FPV Mode
Pan, tilt and roll follow, where all 3 axes follow the movement of user's hand
Lock Mode
All 3 axes do not follow the movement of user's hand, gimbal keeps the direction of the camera fixed
FFW Mode
Flash follow, where all 3 axes follow the movement of user's hand in high follow speed
Extended Ports
At the bottom of the handle:
1/4 inch thread hole*1, which can mount Tripod
Below the multifunction knob:
Type-C charging port*1
Smartphone holder connecting arm
Type-C extension port*1, to connect external accessories
Battery
Type
Lithium Cell
Capacity
2200mAh, built-in battery cannot be removed, charge it via the USB-C port
Theoretical Battery Life
About 11 hours(Well-balanced)
Operating Voltage
6.8V-8.4V
Operating Temperature
-10°- 45°
Charging Time
About 1.5 hours (Using 18W fast charger)
APP
Name
Feiyu ON
Required Operating System
iOS 9.0 or later
Android 6.0 or later
Available Functions
Connected with Feiyu ON APP can fulfill Remote Control, AI tracking, Gesture Control, Countdown Photo, Time-lapse, Panorama, Overlapping Images, Light-tracking, BeautyCam/filter, Video Edit, Virtual Joystick, Firmware update, setting corresponding parameters, switching working modes, etc.
How To Control Smartphone
After connecting the gimbal to the smartphone via Bluetooth, the gimbal can directly control photo/video on smartphone original camera, as well as the zoom, AI tracking and other functions on the Feiyu ON APP.
Optional Accessories
Monopod
Carbon Fiber Extension Rod
Feiyu Magnetic Fill Light for Smartphone Gimbals
Feiyu Magnetic Fill Light Wireless for Smartphone Gimbals
Feiyu Intelligent Tracking Module
Other Available Functions For Users
1. The gimbal can directly control photo/video of the original camera and BeautyCam APP.
2. Users can manually lock the tilting angle to fit any shooting angle needs.
3. Shoot in darkness with the help of Feiyu Magnetic Fill Light (Optional).
4. Achieve AI tracking function without App via Feiyu Intelligent Tracking Module.
5. Users can initialize the gimbal to adjust the oblique working status or abnormal working status to reacquire the correct pose data.
User Manual
Tutorials
Product
1. How compatible is the Scorp-Mini P gimbal?
2. How to clear Bluetooth info?
3. How to charge Scorp-Mini P?
4. How long does it take to fully charge? How to determine if it's fully charged?
5. Does the Scorp-Mini P support charging battery for a smartphone？
6. I can't turn on the gimbal by pressing the power button, what should I do?
7. There is vibration or shaking after booting, how to solve this problem?
8. After turning on the gimabl and launching the APP, no Bluetooth from the gimbal can be found in the APP, what should I do?
9. Does the APP prompt a sequence for upgrading different types of firmware?
10. What should I do if I always get an "upgrade failed" prompt when clicking on firmware upgrade?
11. After the firmware upgrade is completed, when I attempt to restart the gimbal, it cannot start up properly, what should I do?
12. After firmware upgrade completed and gimbal being turned on, the motors do not work at all, what should I do to resolve it?
13. The battery life is short, and the gimbal automatically shuts down during use, what should I do?
14. How to initialize the gimbal?
15. Is the Scorp-Mini P waterproof?
QUESTIONS & ANSWERS
Ask a Question-
Will it work with iPhone 14 Pro Max?
Yes, Scorp-mini P is compatible with iPhone 14 Pro Max.
